– Only system that reduces chlorine consumption by 90%
– Only system that has long life variable production Corona Discharge Cells (5+ years)
– Only system that combines systems that are NSF validated to *ANSI/NSF 50 and **ANSI/NDF 55 Class A, at flow rates as high as 80 GPM
– Only system that exceeds national drinking water sanitation standards (by 2x)!
– Only system that performs at ALL flow rates (15 -100+ GPM), making it ideal for pools with energy saving variable speed pumps.
– Exceeds National Drinking Water Sanitation Standard (ANSI/NSF 55 Class A)
– Broadest flow rate range (15-100+ GPM)
– Medical grade manufacturing facility
– High production Corona Discharge Cells
– 100% ozone conversion to Hydroxyl Radical
– Stainless steel reactor
– PTFE Stainless Steel Braided Hose
– Stainless steel spring loaded check valve
– Large durable air filter

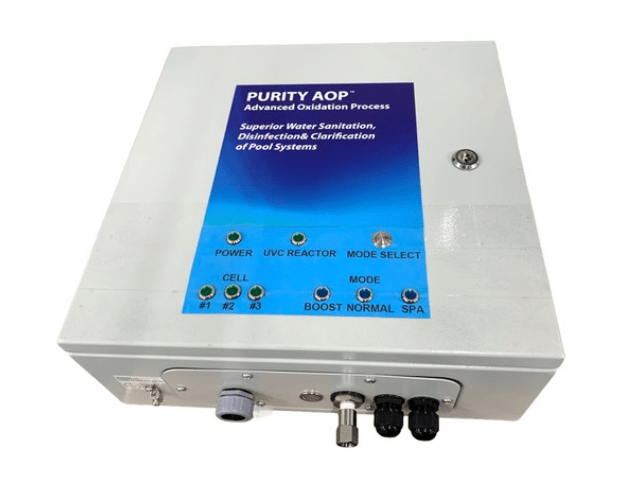

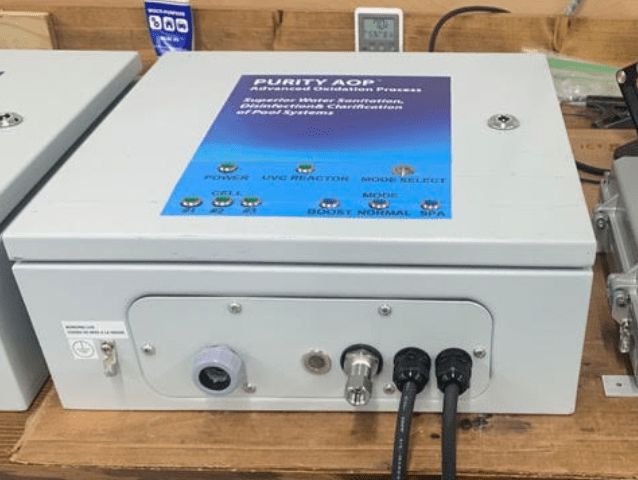

– Nema 4 weather proof control box
– Replaceable anti-corrosion sacrificial anode
– Easy access parts for maintenance
| FEATURE | AOP PLUS | OTHERS |
|---|---|---|
| Destroys Bacteria, Viruses and Pathogens Instantly at flow rates as high as 80GPM | X | NO |
| Reduces chlorine consumption by up to 90% | X | Some |
| Destroys chloramines | X | Some |
| Eliminates need for algaecide | X | Some |
| Laboratory tested to ANSI/NSF 55A | X | NO |
| Laboratory tested to ANSI/NSF 50 | X | Some |
| Exceeds drinking water sanitation standards | X | NO |
| Low cost of ownership | X | NO |
| Medical grade technology | X | NO |
| Stainless steel reactor | X | NO |
| Electropolished highly reflective reactor interior | X | NO |
| Reactor mounted site glass | X | NO |
| Reactor mounts horizonal or vertical | X | Some |
| Extended Lamp life 16,000 hours | X | NO |
| Lamp/Quartz cell assembly | X | NO |
| Sacrificial anode | X | NO |
| Flanged reactor for easy internal cleaning | X | NO |
| Wall, rack or pad mounted | X | Some |
| Nema 4x control box | X | NO |
| 240 VAC, 50-60 Hz | X | Some |
| Allows user to maintain free available (residual) chlorine at drinking water levels (0.5 ppm vs 3-5 ppm) | X | NO |
| No residual ozone | X | Some |
| Stainless steel braided Teflon gas hose | X | NO |
| Variable output ozone cells | X | NO |
| Large air filter | X | NO |
| 316 stainless steel spring loaded check valve | X | NO |
| Smart ballast | X | Some |
| High pressure AN hose connections | X | NO |
| Produces hydroxyl radicals (AOP) | X | Some |
| Clarifies water, eliminates organic matter | X | Some |
| Proprietary injector operates at 15-100+ GPM | X | NO |
| Feature | Description |
|---|---|

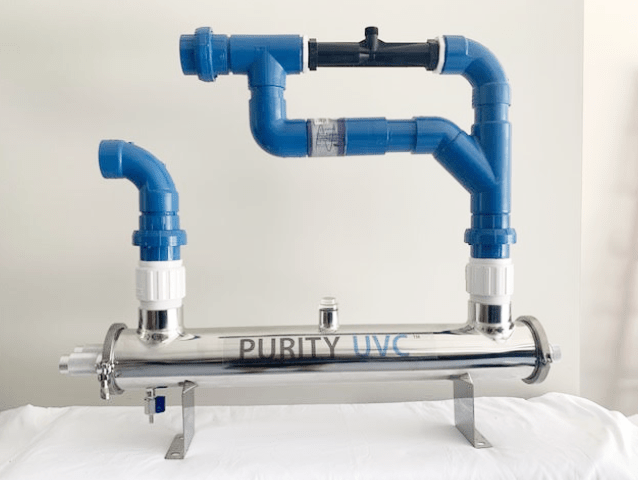

| UVC Reactor | 300 Series Stainless Steel; Enhanced with Electropolished Inside |
| Replaceable Sacrificial Anode | |
| Check Valve | 316 SS Spring Loaded |
| Housing Material | Metal, NEMA 4x |
| Corona Discharge Cells | 3 Variable High Output Cells; Five Years Average Life |
| Ozone Production | Variable 200-900 mg per hr |
| Validated Disinfection Performance Stds | ANSI/NSF 50; 99.999% (Log 5) Reduction. ANSI/NSF 55 Class A (National UV Drinking Water Standard) |
| Water Flow | 15-100+ GPM |
| Pool Size | 80,000 Gallons |
| UVC Lamp Life | 16,000 hrs; 5 yr avg |
| Incoming Filter | 6 Sq Inches of Area |
| Gas Delivery Hose | 10’ Length, Braided Stainless Steel over PTFE (Polytetrafluoroethylene) |
| Power | Available in 120 VAC (2 amps) or 240 VAC (1 amp), 60 Hz |
| Control Box Mounting | Wall or Rack |
| Orientation | Control Box mounts vertically; Reactor mounts vertically or horizontally |
| Plumbing Inlet/Outlet | 2-1/2” PVC Connections |
| Water Connection via Proprietary Injector | 2” PVC Socket |
| Operating Temperature | 32°F – 158°F (0°C – 70°C) |
